Kasco 3.1JF 3 HP Lake Fountain

Kasco 3.1JF 3 HP Lake Fountain

High-Powered Performance for Large Lakes and Water Features

Experience the perfect combination of power, beauty, and water quality improvement with the Kasco 3.1JF 3 HP Lake Fountain. Engineered for large ponds and lakes, this decorative and aerating floating fountain delivers striking multi-tiered water displays while dramatically improving oxygen circulation and water clarity.

The Kasco 3.1JF Fountain is designed for property owners who want a professional-grade water feature that performs flawlessly in large environments — ideal for resorts, golf courses, municipal parks, and estate lakes.

The Kasco 3.1JF 3 HP Lake Fountain has exceptional Aeration and Water Circulation

The 3 HP Kasco JF Fountain provides powerful water movement, circulating thousands of gallons per minute. This increased oxygen flow supports a healthier aquatic ecosystem, reduces unwanted algae and odors, and helps maintain balanced water quality. Perfect for deep or large bodies of water, this floating lake fountain offers both aesthetic appeal and functional aeration in one system.

The  Kasco 3.1JF 3 HP Lake Fountain offers Five Interchangeable Decorative Spray Patterns

Every Kasco 3.1JF Fountain includes five interchangeable spray nozzles, each designed to produce unique and elegant water patterns. From tall, towering columns to wide, multi-tiered displays, these patterns allow you to tailor your fountain’s visual presentation to complement your landscape.

Included Spray Nozzles:

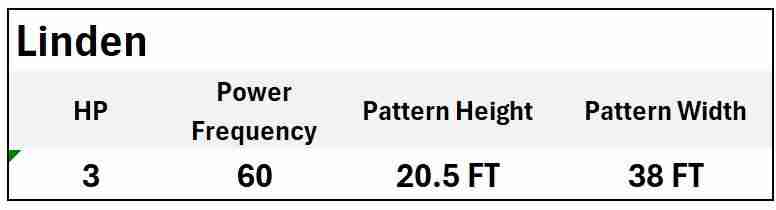

• Linden

• Sequoia

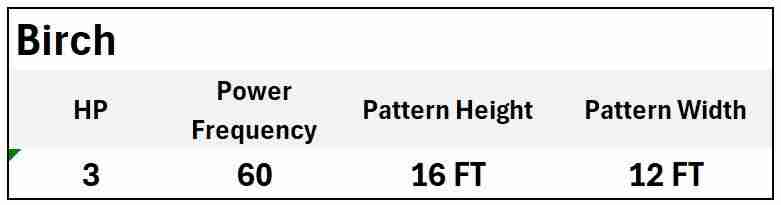

• Birch

• Cypress

• Willows

Optional premium nozzles are available for even greater customization, along with LED lighting kits for dramatic nighttime illumination.

Built for Longevity and Ease of Use

Constructed from marine-grade stainless steel and corrosion-resistant components, the Kasco 3.1JF 3 HP Fountain is built to last. It performs reliably in both freshwater and saltwater environments, making it a durable, low-maintenance choice for long-term use.

The system includes:

• 3 HP motor unit

• Float assembly

• Mooring ropes

• Control panel with GFCI protection

• 5 interchangeable nozzles

• Power cord (available in multiple lengths)

This plug-and-play fountain system installs easily and operates efficiently, providing years of dependable performance.

Perfect for Large Ponds, Lakes, and Commercial Properties

The Kasco JF Lake Fountains is ideal for large lakes, estate ponds, golf courses, and resort landscapes where visibility, scale, and reliability matter most. Its high-volume water display creates a dramatic centerpiece, while its aeration performance promotes a healthier and cleaner aquatic environment.

Key Features of the Kasco 3.1JF 3 HP Lake Fountain:

• 3 HP energy-efficient motor designed for large bodies of water

• Five interchangeable decorative nozzles for versatile spray patterns

• Improves oxygen levels and reduces algae buildup

• Marine-grade stainless steel and corrosion-resistant design

• Easy plug-and-play installation

• Optional LED lighting systems available

• Available power cord lengths: 100’, 150’, 200’, 250’, and more

• Ideal for large ponds, lakes, resorts, and golf courses

Why Choose Water Feature Pros

At Water Feature Pros, we specialize in premium Kasco Marine fountains and aerators that deliver unmatched beauty, performance, and longevity. The Kasco 3.1JF 3 HP Fountain offers the perfect balance between powerful aeration and decorative elegance. Our team can help with expert recommendations for installation, power options, lighting, and nozzle selection to ensure a perfect fit for your project.

Specifications:

• Manufacturer: Kasco Marine

• Model: 3.1JF

• Horsepower: 3 HP

• Voltage: 240V

• Cord Lengths: 100’–400’+ available

• Nozzles Included: 5 decorative spray patterns

• Optional Accessories: Premium nozzles, LED lighting kits

• Applications: Large ponds, lakes, golf courses, resorts, municipal parks

Features

• Five nozzles are included. The patterns range from  9 to 18 ft high and 8 to 31 ft wide
• Can operate in water as shallow as 19 inches deep
• High-efficiency design means low power consumption and low operating costs (10.7 running amps on 120V, 5.3 running amps on 240V circuits)
• Kasco’s unique water-deflecting nozzle design delivers industry-best clog-resistance
• Light packages are available
• Heavy-duty motor and corrosion resistant design; suitable for salt-water or other corrosive environments
• Safety Tested:  ETL listed to UL and CSA standards
• Low maintenance and dependable design
• All power cords  are underwater rated
• Two 50 ft. braided nylon mooring ropes are included
• Ships via FedEx
• 2-year warranty

Control Panels

The 120V decorative aerator fountain comes with a Kasco C-25 Fountain Control Panel, which will deliver the performance and safety you need to get the most from your Kasco Fountain.   The C-25 is a  plug-and-go GFCI protected control panel with a 24-hour timer and a photocell controlled outlet for optional lighting.

• 120V
• Single Phase
• 15 amp

The 240V decorative aerator fountain comes with the Kasco C-85 Fountain Control Panel. The panel comes with  GFCI protection which will deliver the performance and safety you need to get the most from your Kasco Fountain. The C-85 has a 24-hour timer for the fountain and includes a 2nd timer for lighting control. This panel is to be installed by a  qualified electrician.

• 240V
• Single Phase
• 20 amp

No one should be in the water while equipment is operating or plugged in.   The GFCI protected circuit should always be used. It is essential to test any GFCI monthly to ensure proper operation. Check instructions for the procedure. Kasco equipment can come with up to 500 ft of power cord. It is important to not add any additional cord; adding additional cord will void the warranty, void ETL approval, and could cause nuisance tripping of the GFCI. For more information, please consult the  Single Phase Control Panel Specifications Sheet.

Optional Lighting

Before completing your order, please check out the various optional lighting packages that are available for the J and VFX Series decorative fountains.

These include:

• Waterglow  Color Changing RGB LED Lighting
• LED Lighting in Composite Housing
• LED in Stainless Housing

OWNER’S MANUAL

SPECIFICATIONS SHEET

KASCO FOUNTAINS PRODUCT FLYERS
