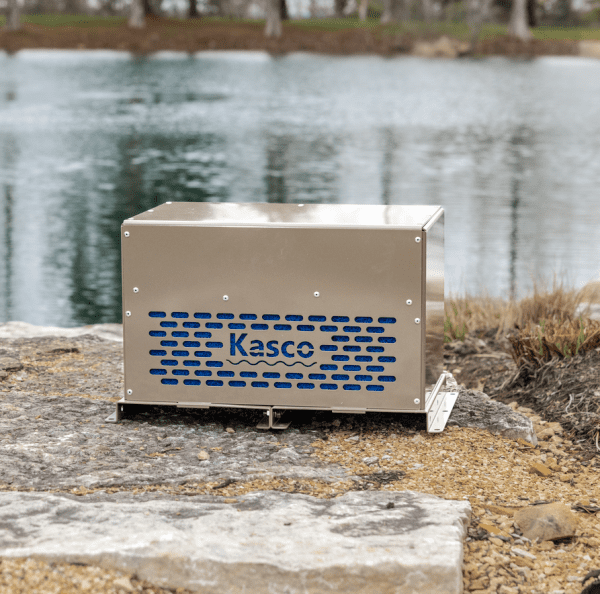

Kasco Robustaire Small System
Starts At:
$1,631
 |  | |
 |  | |
INFORMATION
DESCRIPTION
SMALL SYSTEMS WITH AIREGUARD CABINET TECHNOLOGY
Includes 1 – 3 dual-loop diffuser assemblies, 1 compressor,
small cabinet, and SureSink Weighted Tubing
• Cabinet can be mounted on the ground or on a vertical
structure using the optional mounting bracket
• Ideal for small to mid-size ponds and lakes
• Remote manifold available for installations far from power
Product Notes:
1. Small Cabinets (ex. RA1) are ground-mount standard. Mounting Bracket available separately with part number 774300. See page 57.
2. Small Cabinet systems include 3/8 in. tubing as standard but will also work with 5/8 in. tubing. See page 57.
3. If less tubing is needed, subtract retail price of the rolls not needed. If more rolls are needed, order more rolls as separate line items.
4. Kasco recommends 5/8 in. tubing for any run longer than 300 ft.
5. Remote manifold systems allow installation long distances from power. These systems include remote valve manifold and valve box.
6. No-Cabinet systems include mounting bracket with cooling fan.
ABOUT AIREGUARD CABINET TECHNOLOGY
Kasco RobustAire™ Diffused Aeration systems add beneficial water mixing and movement from the bottom up to prevent weed overgrowth, algae, fish kills, and other issues. Using a shore-mounted compressor, air is pushed through self-weighted lines to a diffuser on the bottom of a pond, lake, or tank allowing water to be thoroughly mixed helping to prevent the most common water quality issues.
Newly designed Small Cabinets are now available in addition to our Medium and Large Cabinets, completing our offering of RobustAire systems with AireGuard Cabinet Technology. Utilizing this new approach to airflow, compressor cabinets are kept cooler and cleaner.
AireGuard Cabinet Technology
Kasco patented AireGuard Cabinet Technology tackles the biggest stressors on compressor operation: heat and dust. With this innovative design, air is immediately passed through an external filtration layer that removes excess dust and debris. Powerful fans then pull this clean air through the compressor, instead of across it, allowing the compressor to stay much cooler and operate at extreme efficiency. The dual-action filtering and air movement acts as a safeguard for the compressor motor and entire system, allowing RobustAire to provide a reliable source of mixing and movement to the water.
This technology is offered in Kasco Small (NEW), Medium and Large Cabinets. These cabinets feature a sleek new look, external maintenance indicators, easy-to-remove panels for scheduled maintenance, quiet operation, and a paint color that seamlessly blends with the environment.
Cabinet Options
NEW Small Cabinet (1-3 diffusers)
Medium Cabinets (4-6 diffusers)
Large Cabinet (7-12 diffusers)
Post Mount Cabinet (1-3 diffusers) – For installations where compressor cabinets can be mounted above the ground
No-Cabinet (1-3 diffusers)
Common Applications
Backyard ponds & lakes
Industrial
Mixing
Winterkill prevention
Waterfowl protection
FEATURES OF ALL THE ROBUSTAIRE SYSTEMS
All RobustAire™ diffused aeration systems are available with an optional remote manifold allowing the compressor to be installed up to a mile away from the water’s edge.
Packages include:
- Diffuser assembly
- Compressor mounting option
- Compressor(s)
- Some models include tubing (see cut sheet for details)
System Features:
- Great for depths 8 ft. and deeper
- 34% quieter than previous models
- Large filters on compressors feature maintenance indicator alerting when cleaning is needed
- No electricity required in the water
- Speeds up organic decomposition
- Creates open water, preventing ice damage
- Designed for continuous operation
WARRANTY PERIODS
Warranty periods:
- Diffuser: Lifetime
- Cabinet: Lifetime
- Tubing: 15 years
- Compressor Motor: 3 years
- Compressor Piston Cups & Cylinders: 2 years
POST MOUNT PACKAGES
NEW SMALL CABINET PACKAGES
MEDIUM CABINET PACKAGES
LARGE CABINET PACKAGES
KASCO PRODUCT RESOURCES AND PDFs
Links to product files including specifications, owner’s manuals, and other related documents for RobustAire™ Diffused Aeration.
- RobustAire Flyer
- RobustAire Small Cabinet Manual
- RobustAire Medium Cabinet Manual
- RobustAire Large Cabinet Manual
- RobustAire Owner’s Manual (Base Mount, Post Mount, & No-Cabinet)
- RobustAire Diffuser Assembly
- Remote Manifold Installation Instructions (RA1-3 Systems)
- Remote Manifold Installation Instructions (RA4-12 Systems)
- 50Hz RobustAire Small Cabinet Manual
- 50Hz RobustAire Medium Cabinet Manual
- 50Hz RobustAire Large Cabinet Manual
- RobustAire Diffuser SureSink Tubing Instructions
- RobustAire Diffuser Testing Summary
- Testing for Fine Bubble Diffusers
